AHD 8-way HD Cameras CCTV Mobile DVR HDD GPS 3G 4G 8 Channel MDVR

Product Categories

Shenzhen Sunta Technology Co., Limited

Contact Now

AHD 8-way HD Cameras CCTV Mobile DVR HDD GPS 3G 4G 8 Channel MDVR

Name: AHD 8way HD Cameras CCTV Mobile DVR HDD GPS 3G 4G 8 Channel MDVR
Brand: LUHOOVISION
Price: 105 USD

Place of Origin : Guangdong, China (Mainland)

Brand Name : LUHOOVISION

Model Number : ST508

Price : US 105-168.00 per piece

Certification : CE FCC

MOQ : 1 piece

Payment Terms : T/T, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 5-8 working days.

Packaging Details : Well packed in professional paper box .

Product name : 8 Channel CCTV Mobile DVR

Type : AHD 8CH Mobile DVR

Resolution : 2 MP

Playback : CIF/D1/720P

Storage : 1x256GB SD + 1x2TB HDD/SSD

Dimension : 162mm*180mm*50.5mm

Contact Now

AHD 8-way HD Cameras CCTV Mobile DVR HDD GPS 3G 4G 8 Channel MDVR

AHD 8-way HD Cameras CCTV Mobile DVR HDD GPS 3G 4G 8 Channel MDVR

AHD 8-way HD Cameras CCTV Mobile DVR HDD GPS 3G 4G 8 Channel MDVR Main FEATURES:

Ÿ Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity

Ÿ 8CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output

Ÿ 8CH local recording with 1080N resolution in real time

AHD 8-way HD Cameras CCTV Mobile DVR Power:

Ÿ Professional In-Vehicle power design,8-32V DC Wide Voltage Range

Ÿ Multi protection circuits like under-voltage, short, reversed plug-in

Ÿ Smart power management system, shutdown under low voltage, low consumption

Data Storage:

Ÿ Special file management system to encrypt and protect the data

Ÿ Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive

Ÿ Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage

Ÿ Support 2.5 inch HDD/SSD, maximum 2TB

Ÿ Support SD card storage, maximum 256GB

Ÿ Support hard disk heating

Transmission Interface:

Ÿ Support GPS/BD optional, high sensitivity, fast positioning

Factory Directly Supply AHD 8-way Cameras HDD Cheap GPS 8CH MOBILE DVR Technical parameter:

Item

Device parameter

Performance

System

Main processor

Hi3520DV300

Operating system

Embedded Linux OS

Operating language

Chinese/English

Operating interface

GUI, support mouse

Password security

User password/Admin password

Audio

Video

Video standard

PAL/NTSC

Video compression

H.264

Image resolution

1080N/720P/960H/D1/CIF

Playback quality

1080N/720P/960H/D1/CIF

Compound mode

A variety of ways

Decoding ability

1ch 1080N real time

Recording quality

Class 1-6 optional

Image display

Single/QUAD display optional

Audio Compression

G.726

Audio recording

Audio & Video synchronized recording

Recording & Playback

Recording mode

Manual/Alarm

Video bit rate

Full frame 4096Mbps,6 classes image quality optional

Audio bit rate

8KB/s

Storage media

SD card + HDD/SSD storage

Video inquiry

Inquiry by channel/Recording type

Local playback

Playback by file

Firmware upgrading

Upgrading mode

Manual/Automatical/Remote/Emergency Recovery

Upgrading method

USB disk/Wireless network/SD card

Interface

AV input

8ch aviation interface

AV output

1ch VGA video output, 1ch aviation AV output

Alarm input

4 digital inputs (4 Positive/Negative trigger)

HDD/SSD

1 HDD/SSD (up to 2TB, support hot plug/unplug)

SD card

1 SDXC High speed card (up to 256GB)

USB interface

1 USB 2.0 (support U disk/mouse)

Ignition input

1 ACC signal

UART

1 LVTTL Level

LED Indication

PWR/RUN

Disk lock

Debug port

Function extention

GPS/BD

Support detecting antenna Plug in/Unplug/Short circuit

Others

Power input

8~32V DC

Power output

5V 300mA

Power consumption

Standby 3mA

Maximum consumption 30W @12V 2.5A @24V 1.25A

Working temperature

-20 --- 70℃

Storage

1080N 1.2G/h/channel

720P 1G/h/channel

960H 750M/h/channel

Dimension

162mm*180mm*50.5mm

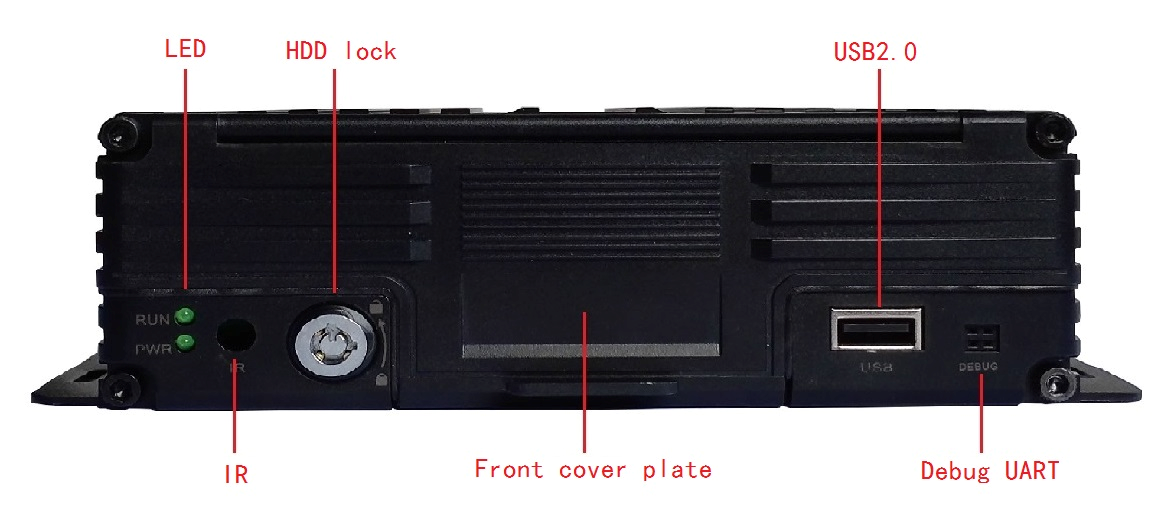

SUNTA luhoovision Factory Directly supply 8 CH AHD HDD Cheap Mobile DVR Front Panel:

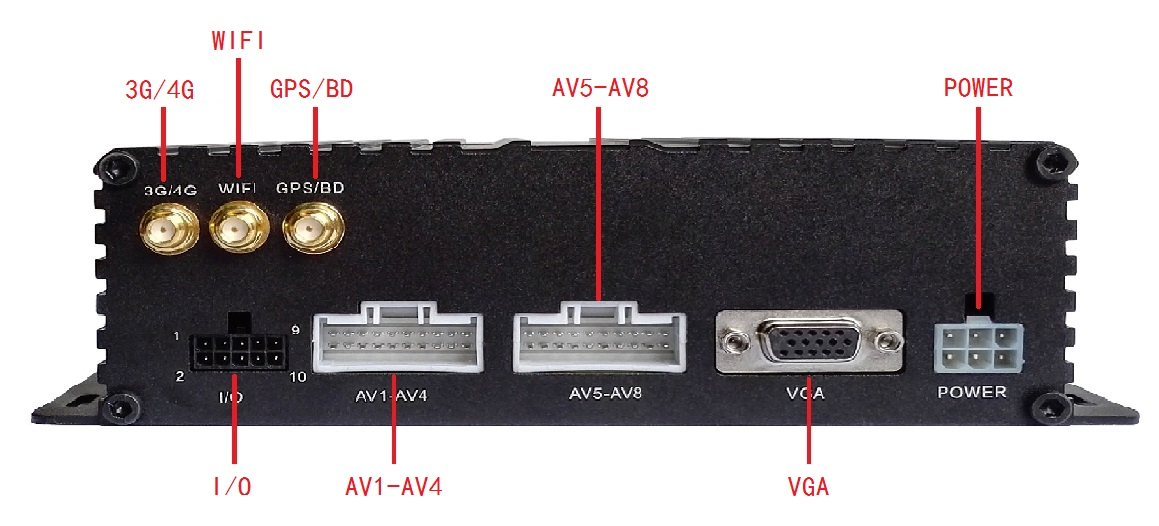

Supply cheap SUNTA luhoovision 8 channel ahd mobile dvr with gps function Back Panel:
